21.1. Setup

21.1.1. Masonry Scripts

The masonry scripts are bundled with VisIt’s source code. You will need to download the source code and extract masonry from visit/src/tools/dev. There are a few options for downloading the source code. If you want a released version of VisIt then go to the source code downloads page and look for the VisIt sources link. The other option is to download from the git repository. Once you have the source code, copy visit/src/tools/dev/masonry to a location of your choosing.

21.1.2. Configuration

  1. In the opts directory copy one of the *.json files and rename it as desired. For example: cp mb-3.1.1-darwin-10.14-x86_64-release.json mb-3.1.2-darwin-10.14-x86_64-release.json
  2. Open the JSON configuration file (see Figure 21.1) created in step 1 and modify or add the following options as needed:
version: required
The version of VisIt you are building.
build_types: required
A list of builds for masonry to create.
build_dir: optional
The directory to place all of the files generated from the build process. If this option isn’t specified the build directory will default to build-<json_base> (e.g., build-mb-3.1.2-darwin-10.14-x86_64-release) in your current working directory.
branch: required
The git branch to checkout and build.
arch: required
The build architecture (e.g., darwin-x86_64).
cert: optional
The Developer ID signing certificate Common Name.
make_nthreads: optional
The number of parallel threads to use when building the source code.
skip_checkout: optional
if you have to restart masonry and already have the source code checked out you can skip that step by setting this option to yes.
boost_dir: optional
The path to boost if installed on your system. This also triggers the setting of two CMake options (VISIT_USE_BOOST:BOOL and BOOST_ROOT:PATH).
git: required

mode: required - set this option to ssh or https

git_uname: optional - github username

depth: optional - specify an integer value for a shallow clone with a history truncated to the specified number of commits.

build_visit: required

Allows you to set the build_visit options.

cmake_ver: required - the CMake version to use

args: optional - arguments for build_visits

libs: optional - third-party libraries to build

make_flags: optional - Make flags

force_clean: optional
Removes all files and directories from your build folder.
c_compiler: optional
Specify the C compiler
cxx_compiler: optional
Specify the C++ compiler
tarball: optional
Specify the path to the source tar file. This option is currently not being used.
build_xdb: optional
Set the VISIT_ENABLE_XDB:BOOL option to ON if true.
cmake_extra_args: optional
Specify extra arguments for CMake.
config_site: optional
Specify a path for the config site file.
platform: optional
Specify the platform (osx or linux)
../../_images/config.png

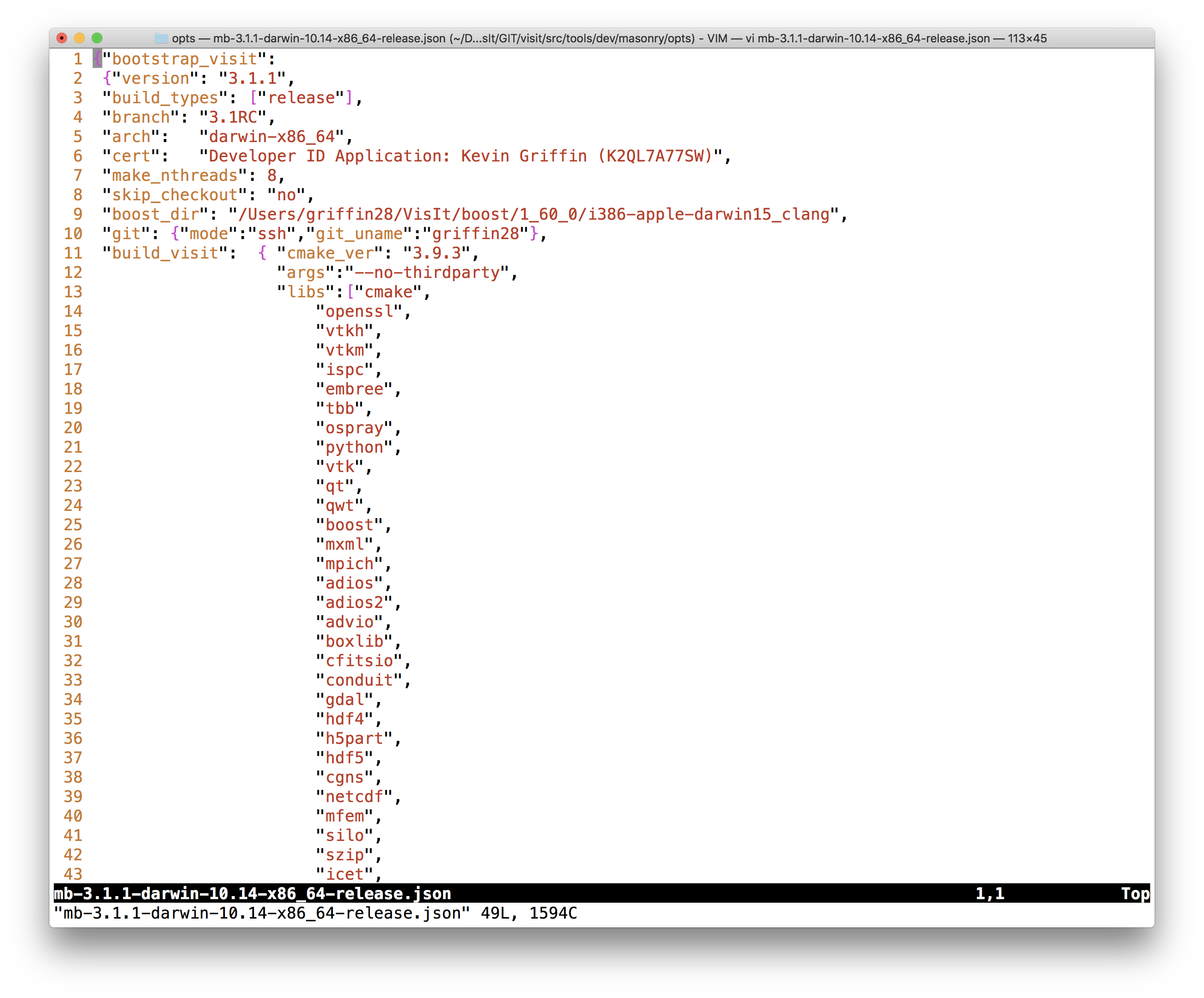

Fig. 21.1 Masonry’s JSON config file

21.1.3. Signing macOS Builds

To code sign your VisIt build, you must be enrolled in the Apple Developer Program and have a valid Developer ID certificate. Below are simple steps to get started, reference the links for more detailed information.

  1. Enroll in the Apple Developer Program, if needed, and create your Developer ID certificates.
  2. Install Apple certificates into your keychain
    • From Xcode go to the account preferences (Xcode->Preferences->Account) and select the Manage Certificates… button.
    • Click the + to add your certificates (see Figure 21.2).
  3. Add the Developer ID signing certificate Common Name to the cert option in the masonry JSON configuration file.
../../_images/certs.png

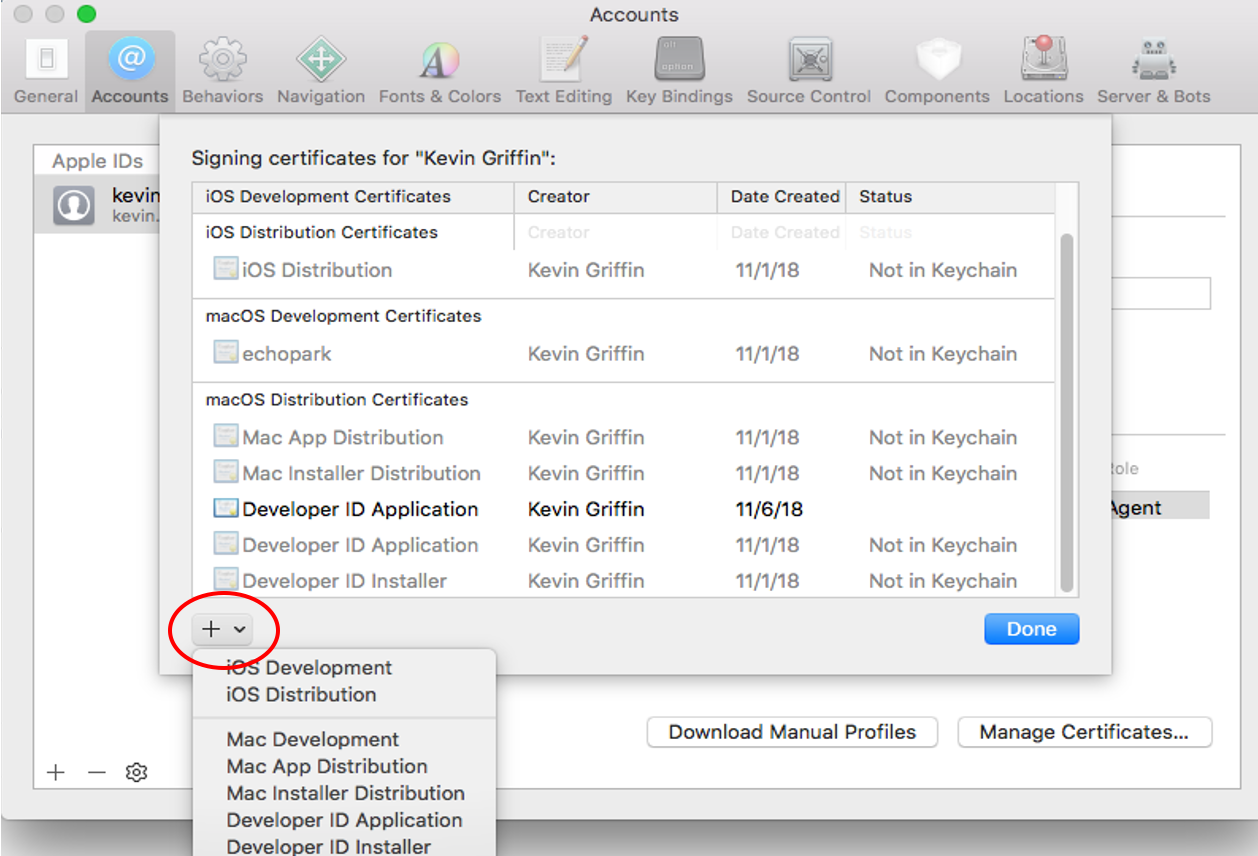

Fig. 21.2 Xcode Manage Certificates Dialog
